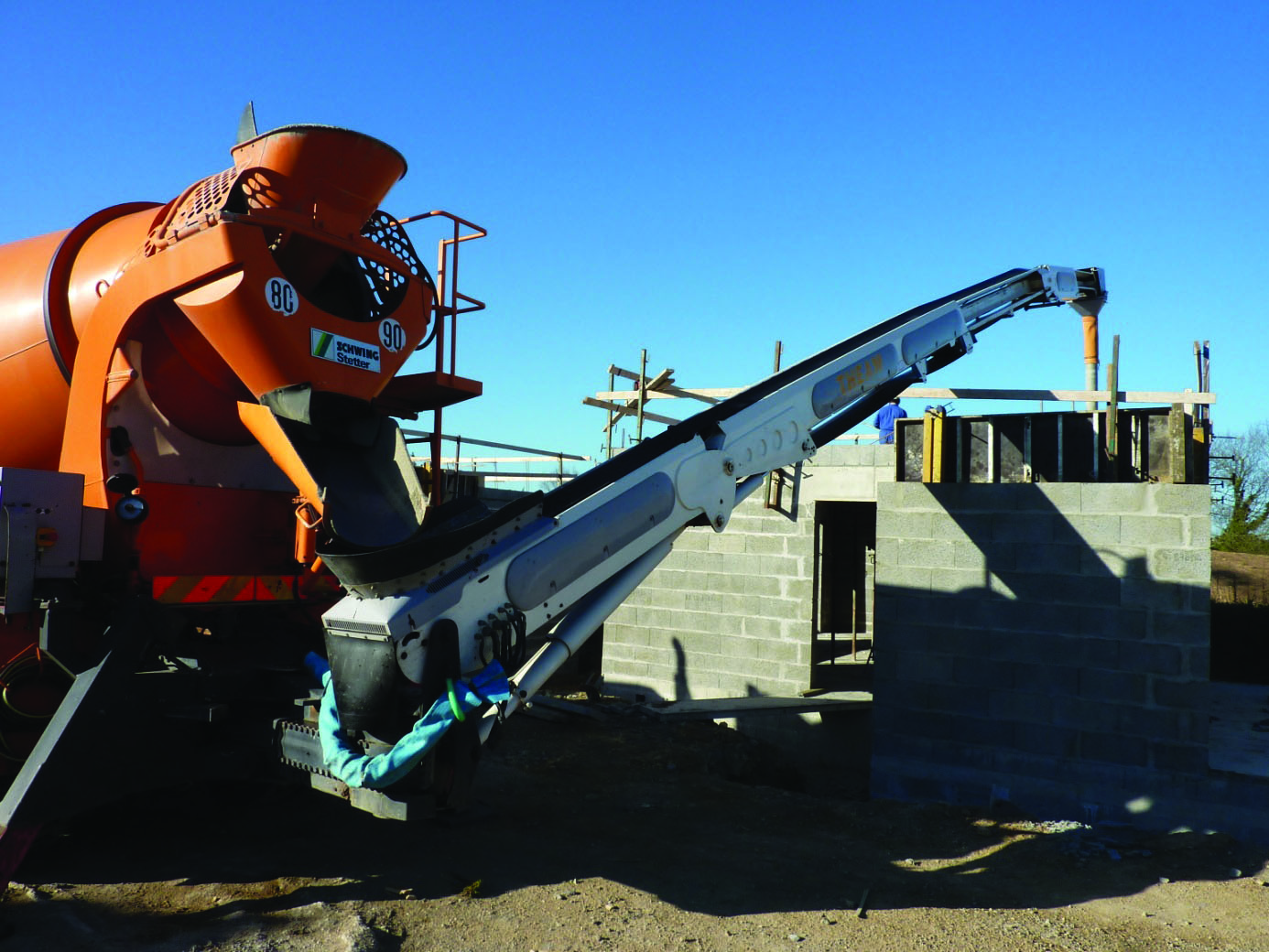

TDL 16.5

Double telescop 16.5 m in aluminum

TECHNICAL FEATURES

CONVEYING DISTANCE———————————– from 10.70 up to 16.70 M
BELT WIDTH———————————————— 360 MM
MAX DISCHARGE RATE———————————– 70M3 / H
ROTATION————————————————— 310°
MAX DISCHARGE HEIGHT——————————- 9M
WEIGHT—————————————————– 3000 KG
ALUMINIUM STRUCTURE
PROPORTIONAL HYDRAULICS
STABILIZERS

An increased flexibility :

Teelescope reduces penibility, avoid the several in/out of the cabin

A lot of applications :
Various applications (foundations, slabs, shuttered walls…)
Payload of 6.5m3 concrete*
*depends on truck and mixer configuration

High quality delivery :
Can deliver every kind of concrete plasticity and gravels
Sliding system preventing concrete segregation
Smoothness and precision thanks to proportional hydraulics

Optional equipements :
. High pressure washer
. High voltage power line detector (HTA et HTB)
. Remote support in the cabin with connector
. Mixer chute UP/Down from the conveyor remote
