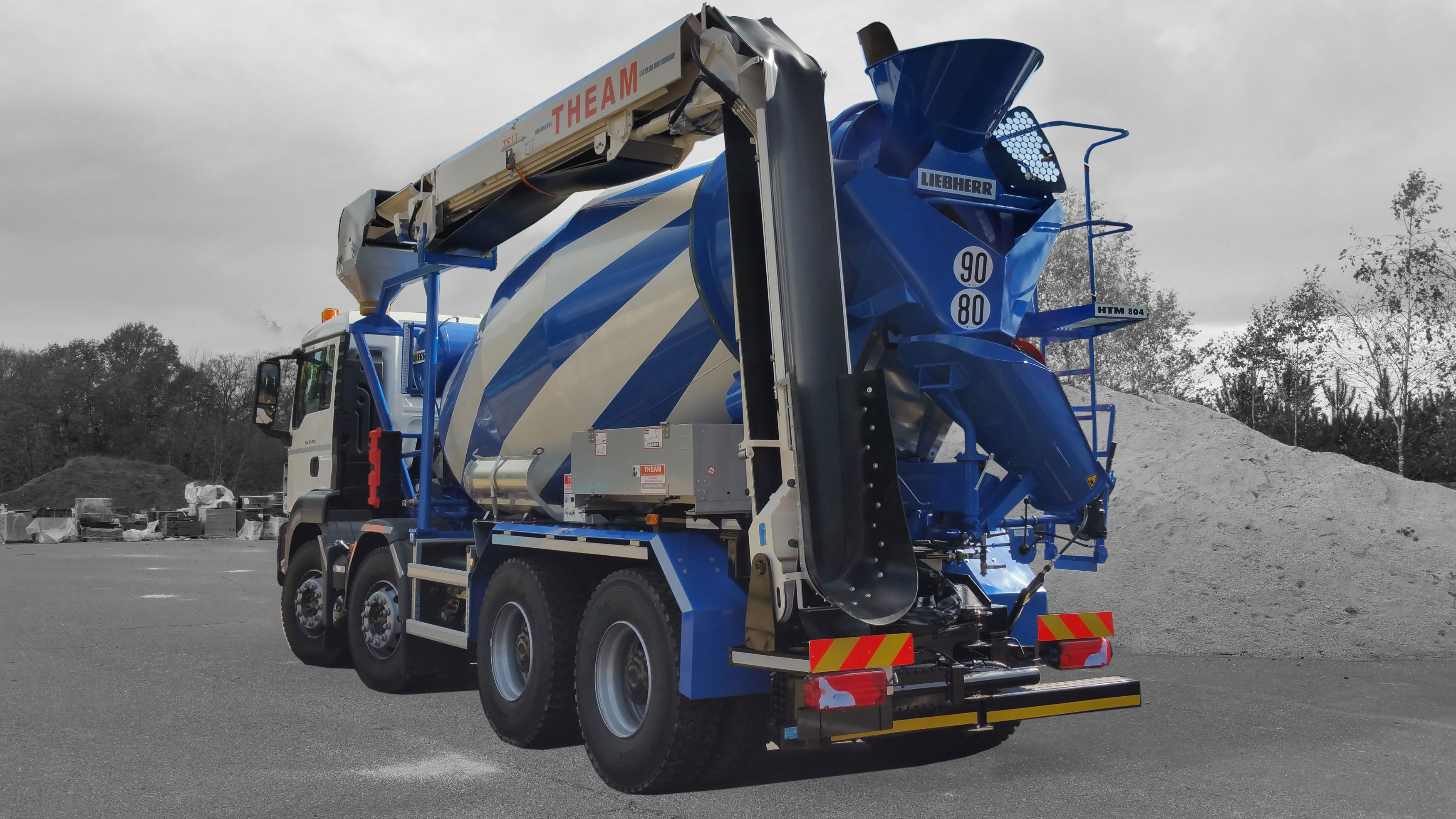

TS13V2

Simple telescopic conveyor 13 m steel

TECHNICAL FEATURES

CONVEYING DISTANCE—————————————-from 9.2 up to 13 M
BELT WIDTH—————————————————–360 MM
MAX DISCHARGE RATE—————————————-70M3 / H
ROTATION——————————————————–310°
MAX DISCHARGE HEIGHT————————————7M
WEIGHT———————————————————-2150 KG
STEEL STRUCTURE
OPTIONAL PROPORTIONAL HYDRAULICS
NO STABILIZERS

Service and profitability at every step !

An increased flexibility :

3m telescope on the second section
Reach of 13M
Telescope reduces penibility, avoid the several in/out of the cabin

A lot of applications :

Various applications (foundations, slabs, shuttered walls…)
Payload of 7m3 concrete*
*depends on truck and mixer configuration

High quality delivery :

Can deliver every kind of concrete plasticity and gravels
Sliding system preventing concrete segregation

Optional equipements :

High pressure washer
High voltage power line detector (HTA et HTB)
Remote support in the cabin with connector
Mixer chute UP/Down from the conveyor remote
